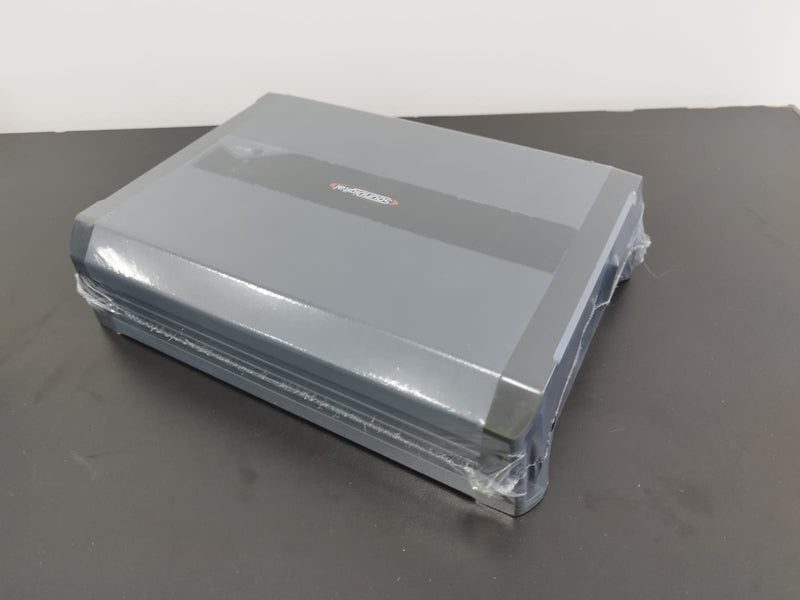

Soundigital SD5000 EVO 5 Car Audio Amplifier 5000 Watts RMS 2 ohms

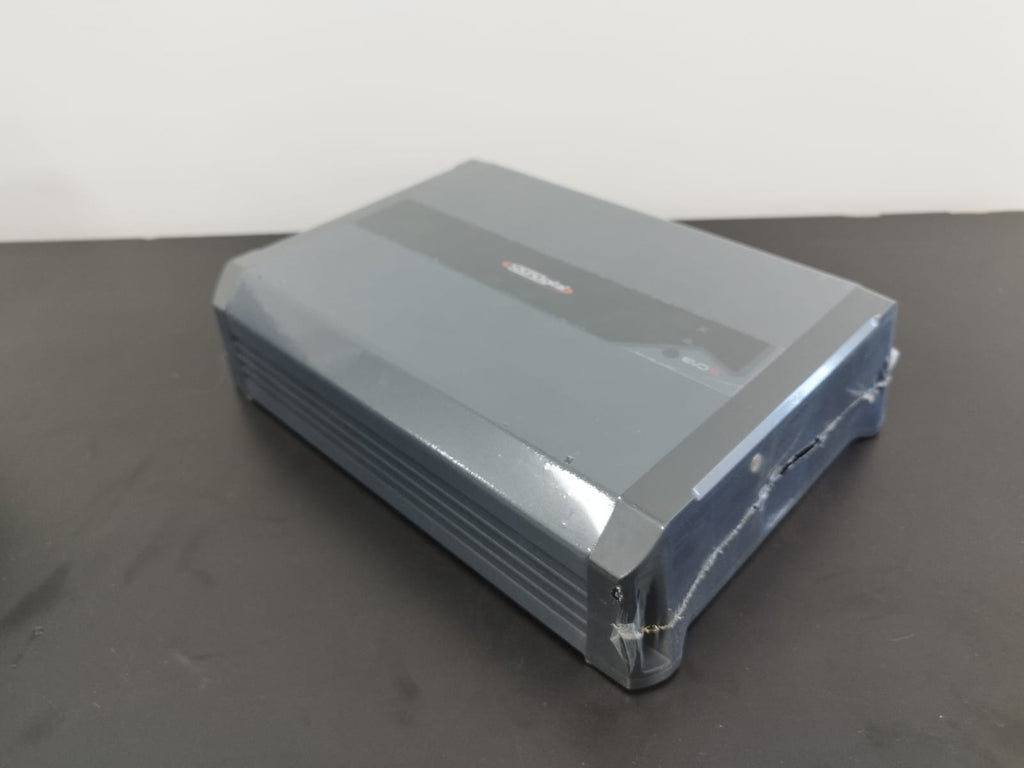

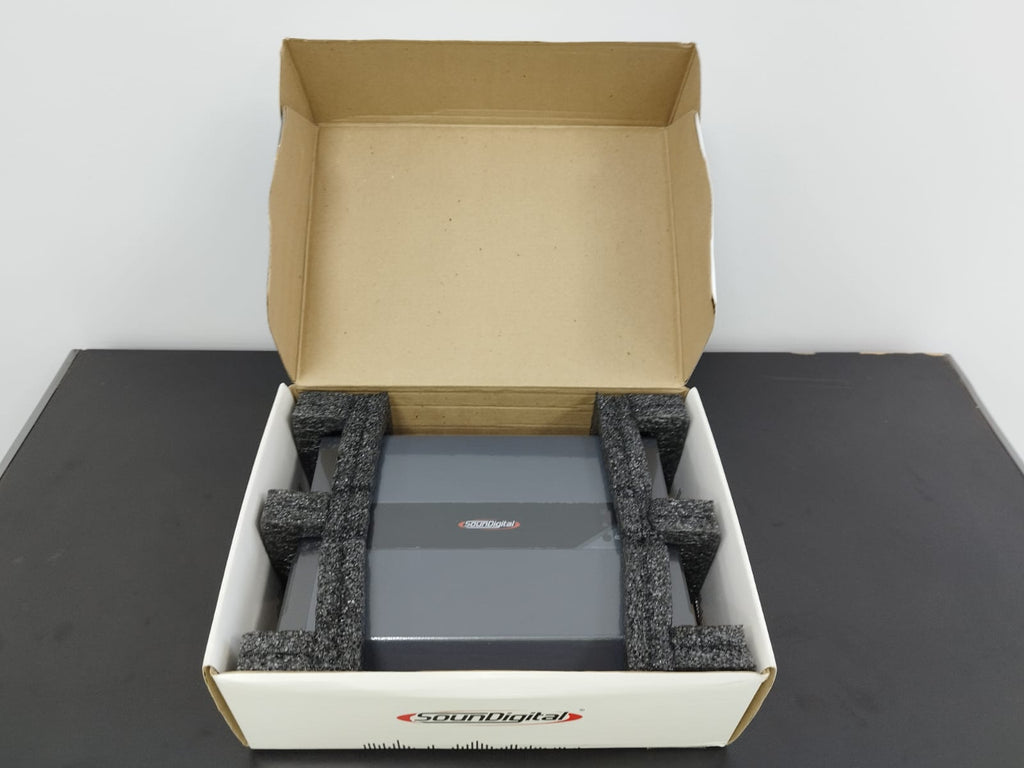

SounDigital 5000.1 EVO 5 – 2 Ohms Monoblock Amplifier | 5000W RMS High-Performance Class D

The SounDigital 5000.1 EVO 5 is a high-performance amplifier engineered for demanding automotive audio systems. Compact, modern, and powerful, it delivers 5000W RMS in a single channel, ensuring exceptional sound pressure, clarity, and consistency for your car audio setup.

Equipped with exclusive patented technologies, the EVO 5.0 line offers cleaner sound reproduction, greater fidelity, and enhanced energy efficiency. This amplifier is the ideal solution for projects requiring power, stability, and superior sound quality — perfect for professionals and enthusiasts who seek precision and performance.

Technical Specifications

Model: 5000.1 EVO 5 – 2 Ohms
Type: Class D Monoblock Amplifier (1 Channel)
Impedance: 2 Ohms

Power Output:

• 5000W RMS @ 2 Ohms

• 3300W RMS @ 4 Ohms

Frequency Response (-3dB): 5Hz – 20kHz
Subsonic Filter (12dB/oct): 5Hz – 80Hz
Low-Pass Filter (12dB/oct): 50Hz – 20kHz
Bass Boost: 0dB – 12dB @ 50Hz
Signal-to-Noise Ratio: 90dB
Damping Factor (@100Hz): >2000

Power Supply and Consumption

• Operating Voltage: 8V – 16V

• Average Musical Current Draw: 230A

• Maximum Current Draw: 461A

• Overall Efficiency: 86%

• Recommended Fuse (Musical Use): 250A

• Recommended Battery (Minimum for Musical Use): 250Ah

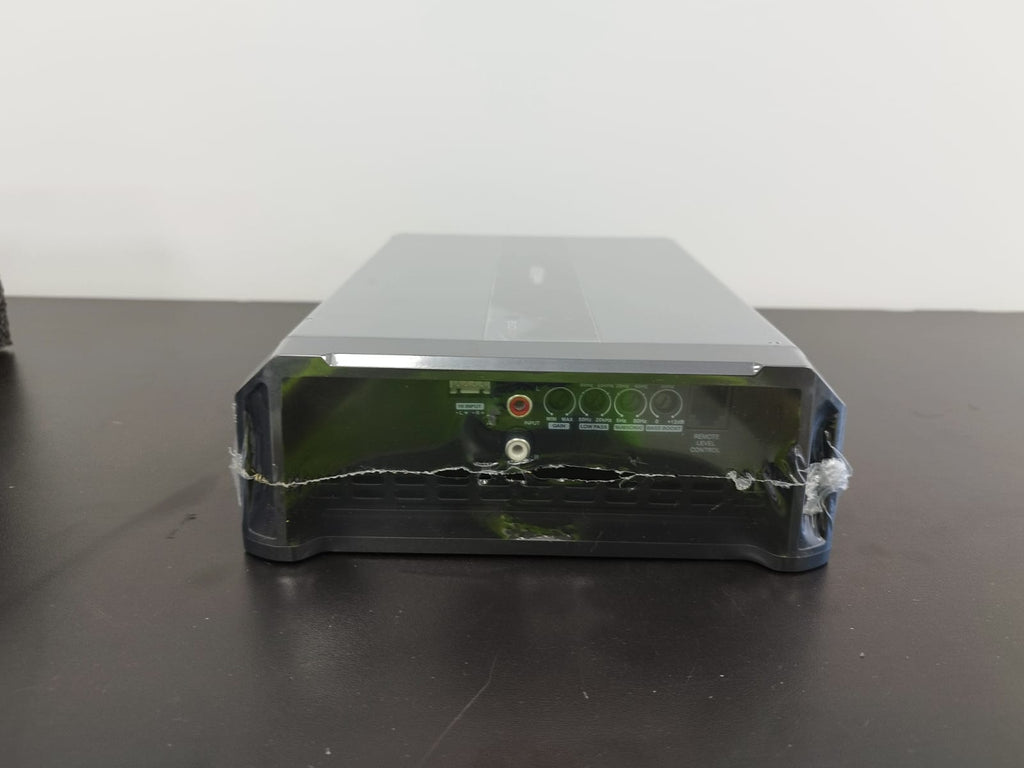

Inputs and Connectivity

• RCA Input Sensitivity: 0.2V – 2V

• High-Level Input Sensitivity: 1.5V – 15V

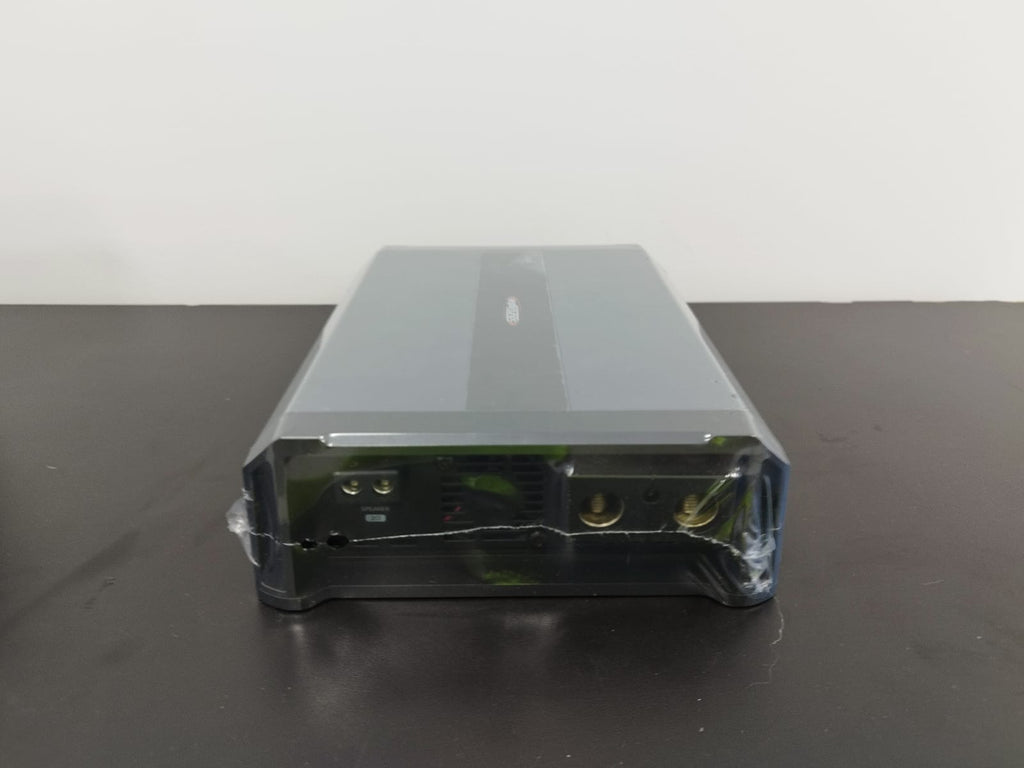

Installation Requirements

• Power Cable: 50mm² (0 AWG)

• Speaker Output Cable: 2 × 6mm² (9 AWG)

Dimensions and Weight

• Width: 18 cm

• Length: 25 cm

• Height: 6.32 cm

• Weight: 3.10 kg

Overview

Built and engineered in Brazil, the SounDigital EVO 5.0 series represents the perfect balance between innovation, performance, and reliability. Designed for those who demand more from their car audio system, this amplifier guarantees efficient power delivery, minimal distortion, and exceptional thermal stability — even under extreme use.

Transform your sound experience with the SounDigital 5000.1 EVO 5 and feel the difference in every beat.
