Expert Electronics X8 AiR 8-Ch Digital Audio Processor
Expert Electronics X8 AiR 8-Ch Digital Audio Processor
Eight Channels. Total Mastery. The Pinnacle of Car Audio Processing.
When only the best will do, the Expert Electronics X8 AiR delivers. With 8 independent output channels, three professional crossover filter types, and full Bluetooth control from your smartphone, this is the processor for builders who refuse to compromise on any aspect of their sound system.
Why the X8 AiR Is in a Class of Its Own
- 🔀 8-Channel Output — Full independent control over tweeters, midranges, midbass, and subwoofers in a true 4-way active system
- 🎚️ 15-Band Input Equalizer — Precise frequency shaping with –12 to +12 dB gain range per band
- 🎛️ 3 Crossover Filter Types — Linkwitz-Riley, Butterworth, and Bessel with slopes from 6 to 48 dB/oct
- 📡 Bluetooth App Control — Tune wirelessly via the Expert Electronics app on iOS 13+ or Android 7+
- 🎙️ 32-bit / 96 kHz DSP — Studio-grade fidelity with <0.01% THD+N and <0.6 ms signal latency
- ⚙️ Full Per-Channel DSP — Mute, Phase, Limiter, Gain, Delay, and Reset on every output
- 📥 4 RCA Inputs — Accepts up to 4 source inputs (L/R pairs) for maximum system flexibility
- 📱 App on Google Play & App Store — Available for download on both major platforms
Technical Specifications
Crossover
- Frequency Range: 20 Hz – 20 kHz
- Filter Types: Linkwitz-Riley / Butterworth / Bessel
- Attenuation Slopes: 6 / 12 / 18 / 24 / 36 / 48 dB/oct
- EQ Input Bands: 15
- EQ Input Gain: –12 to +12 dB

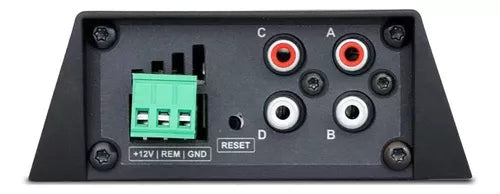

Inputs
- Number of Inputs: 4 (L/R pairs)
- Type: Electronically Balanced
- Connectors: RCA
- Max Input Level: 4.00 Vrms (+14 dBu)
- Input Impedance: 100 kΩ

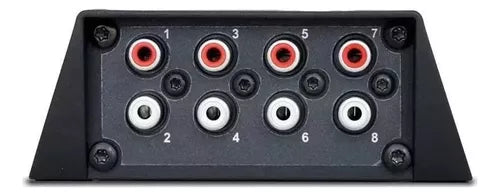

Outputs
- Number of Outputs: 8
- Connectors: RCA
- Type: Electronically Balanced
- Max Output Level: 3.50 Vrms (+13 dBu)
- Output Impedance: 100 kΩ
DSP Performance
- Frequency Response: 10 Hz – 24 kHz (–1 dB)
- THD+N: < 0.01%
- Signal Latency: < 0.6 ms
- Bit Depth: 32-bit
- Sampling Rate: 96 kHz
Power & Dimensions
- Power Supply: 10–15 VDC
- Maximum Consumption: 300 mA

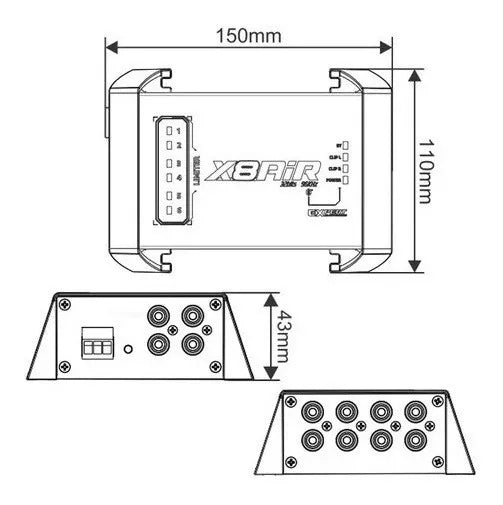

- Dimensions: 150 × 110 × 43 mm
- Weight: 0.378 kg
Compatibility
- iOS 13+ and Android 7+
- App available on Google Play and Apple App Store
🔒 Backed by Expert Electronics' commitment to quality. Take your system to the next level — add to cart and experience true audio mastery.
