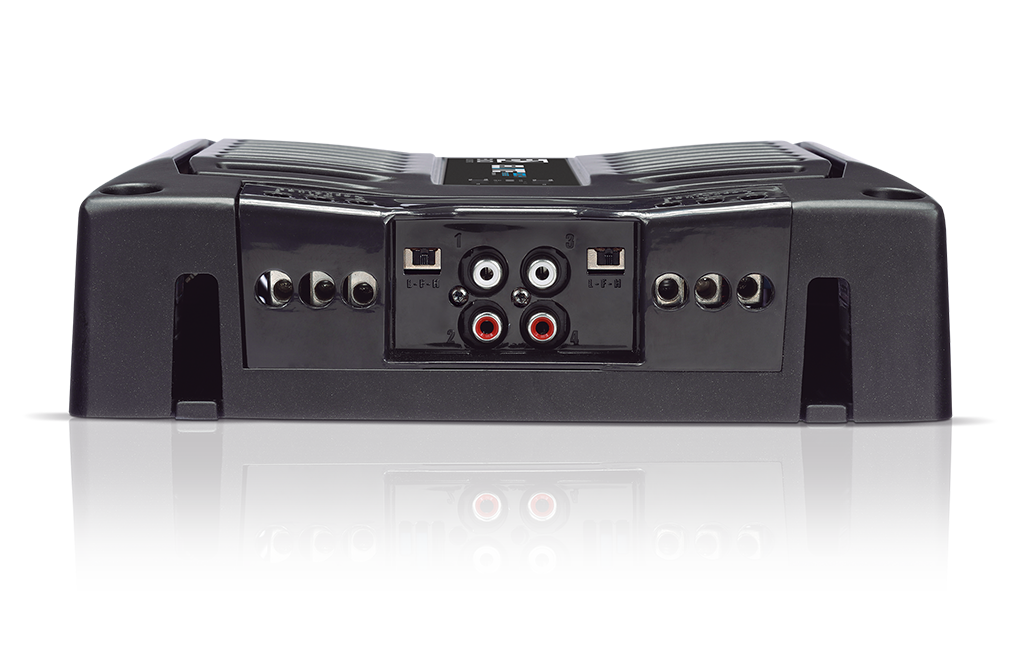

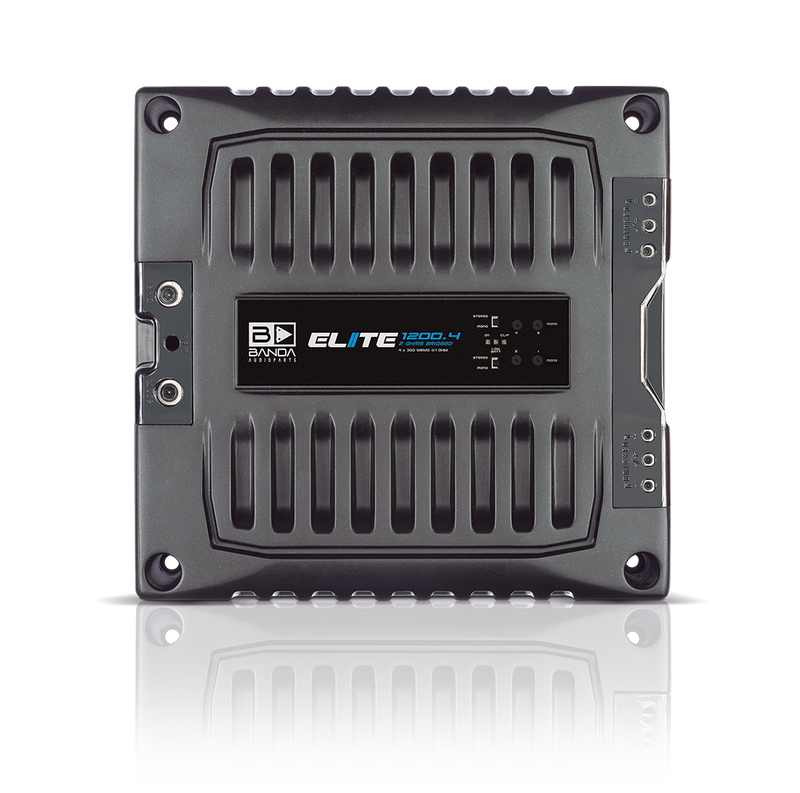

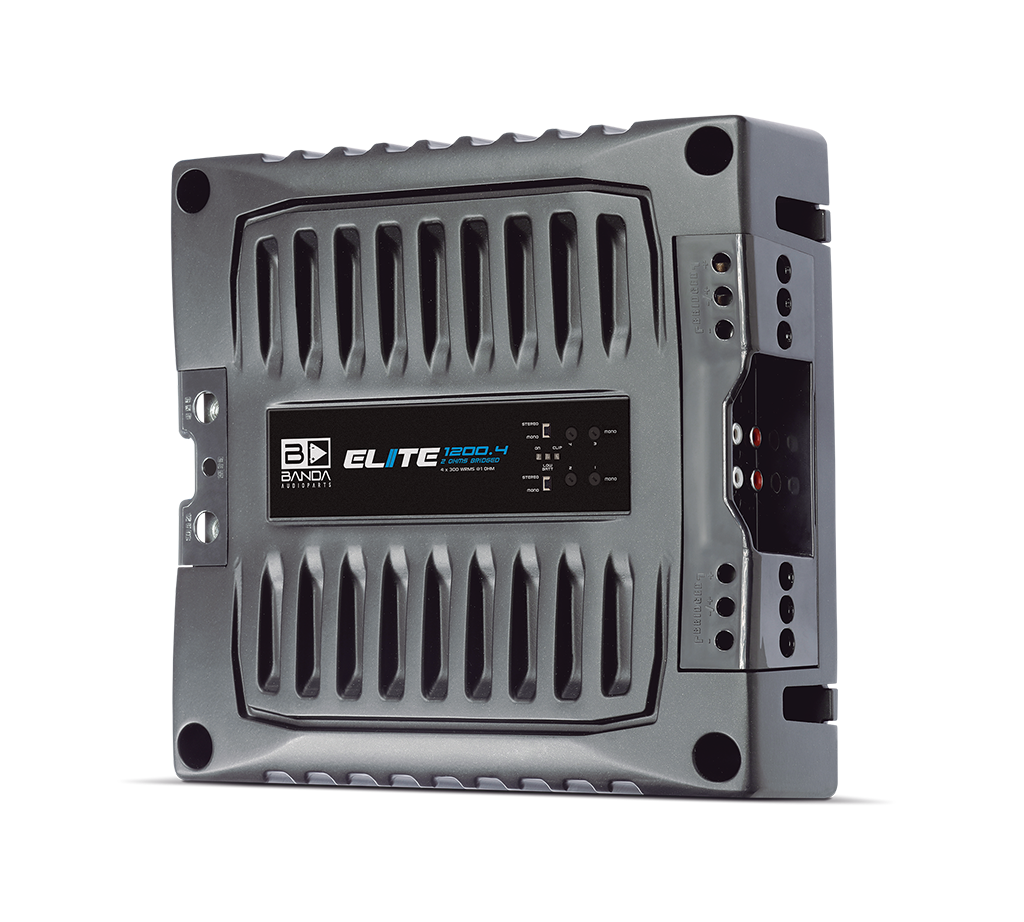

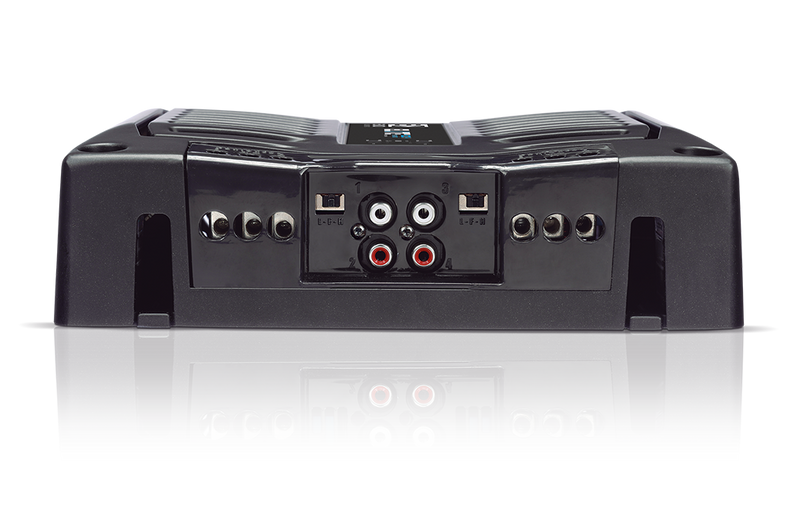

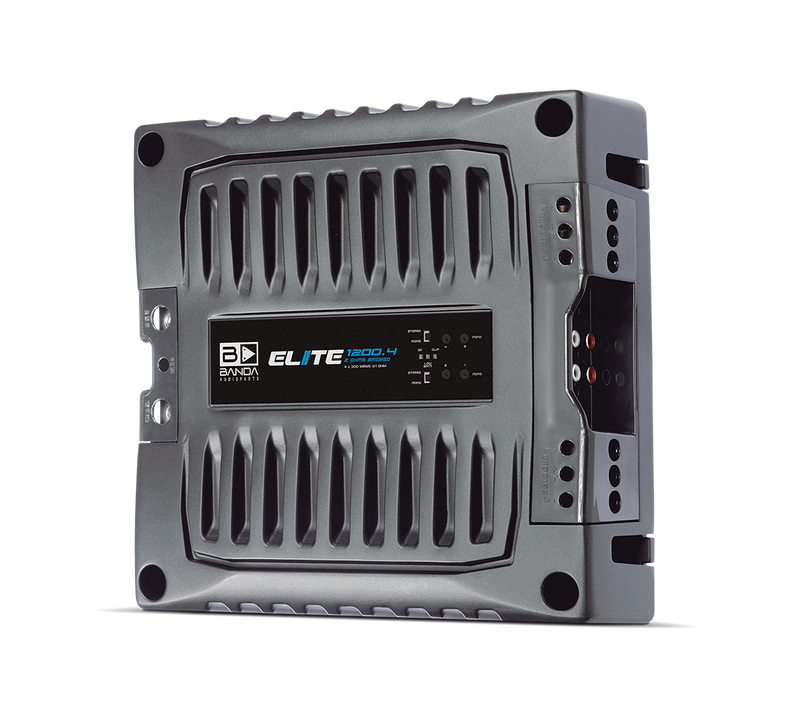

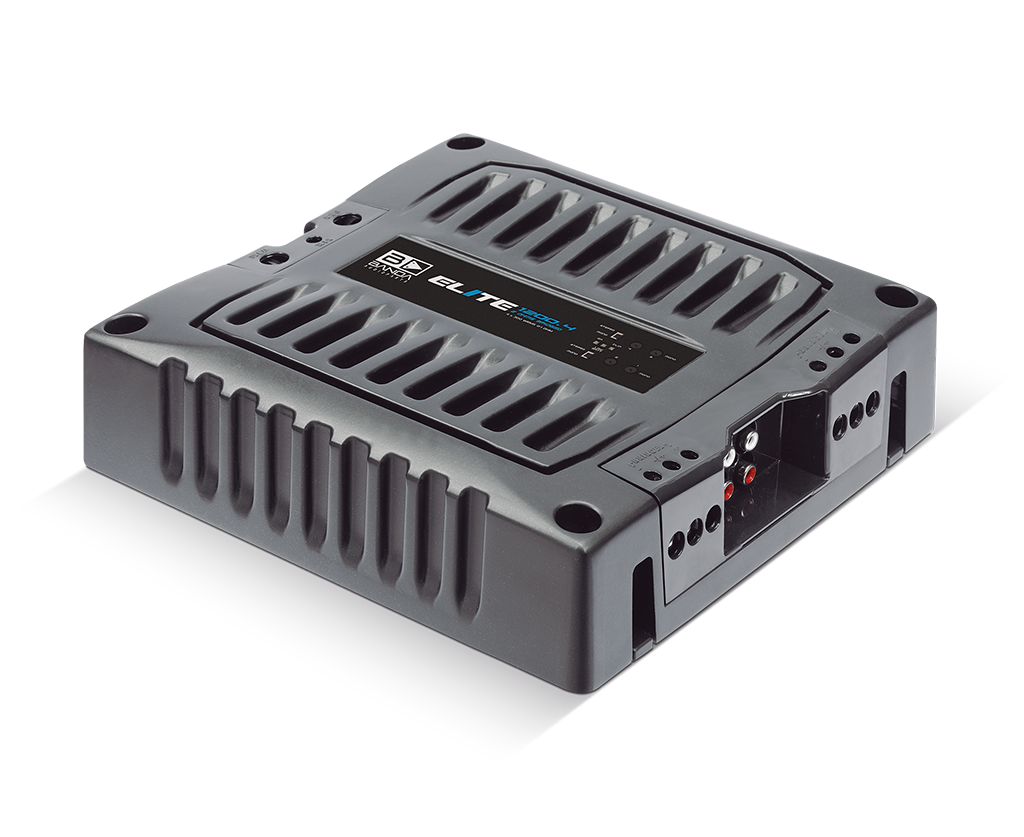

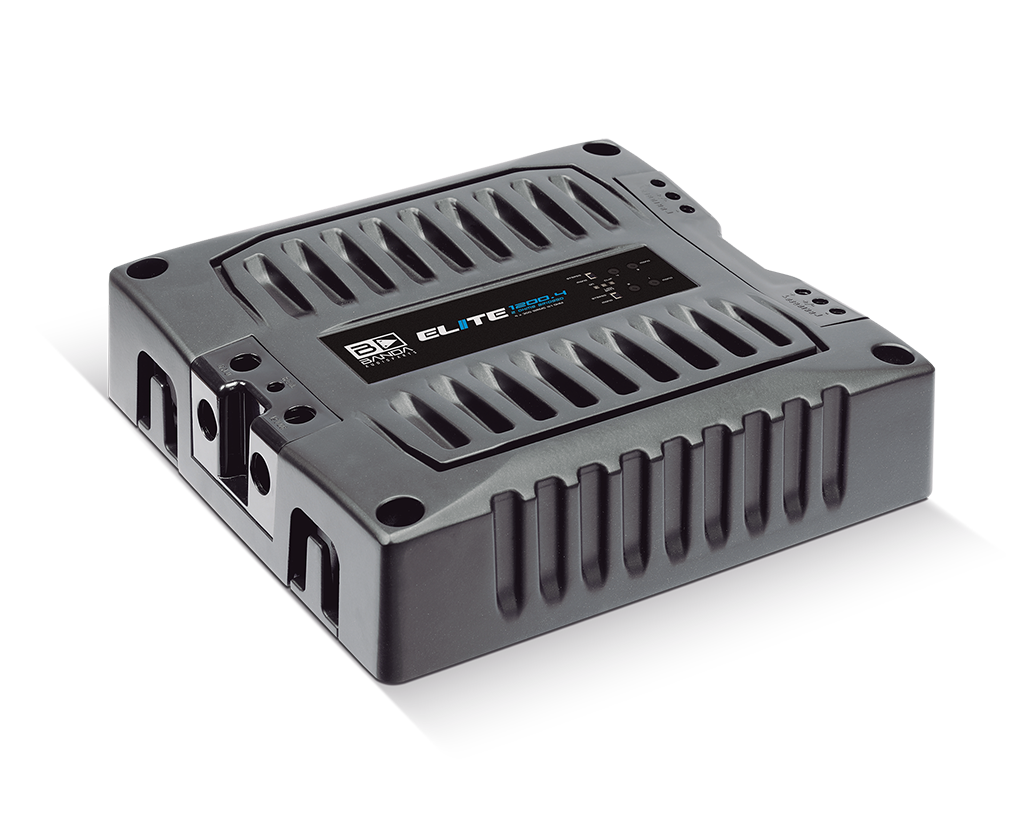

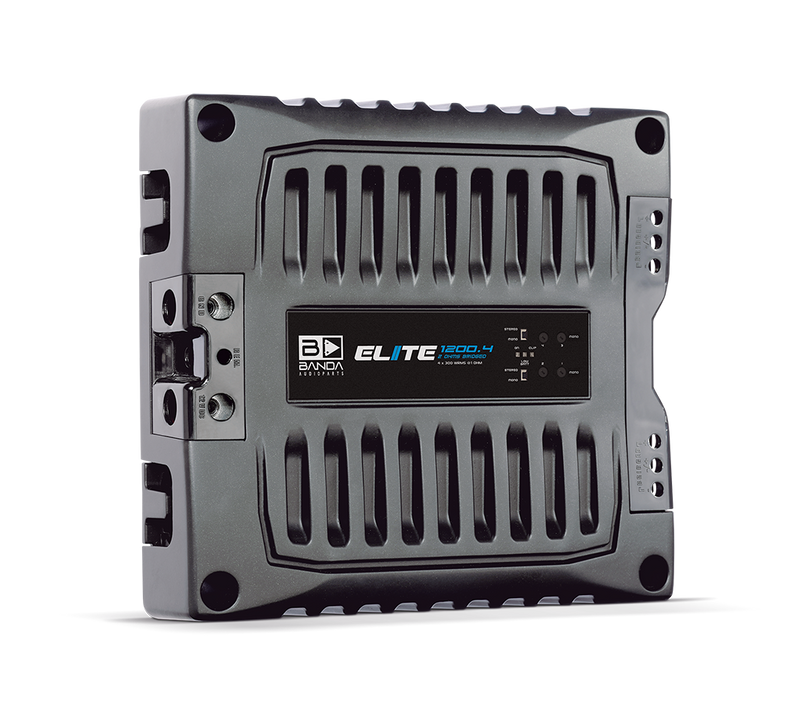

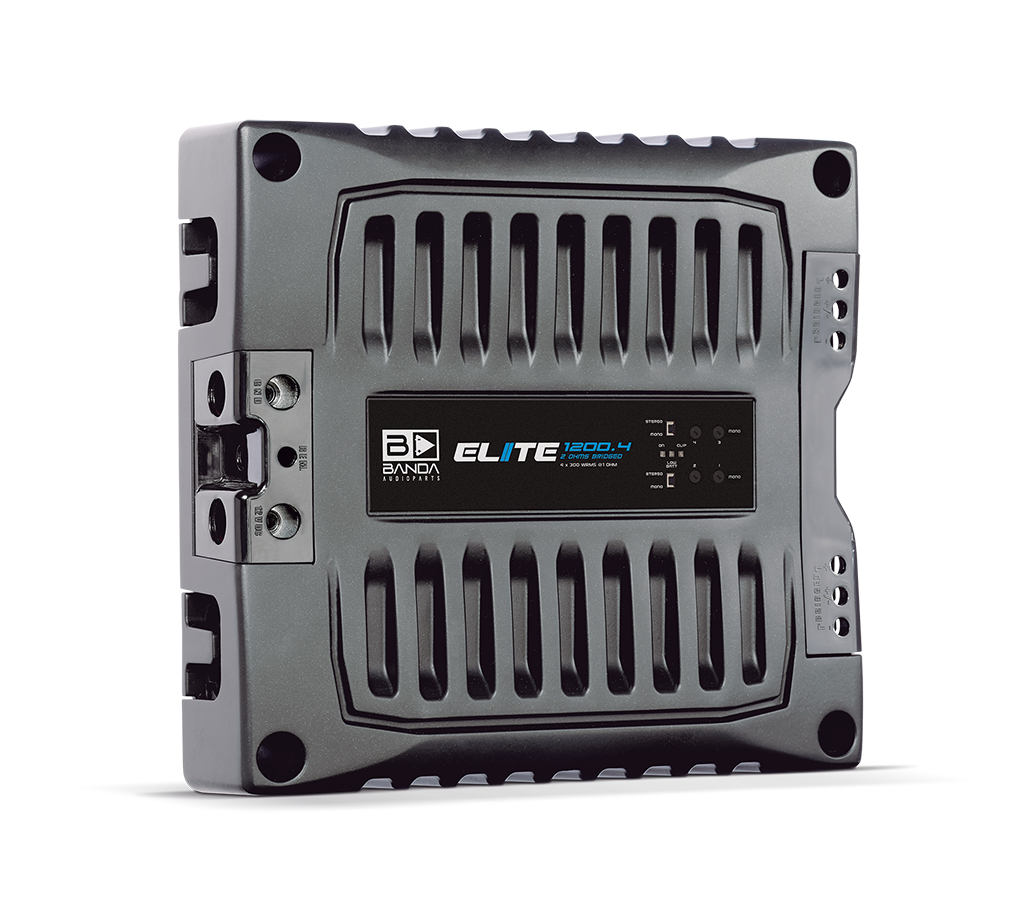

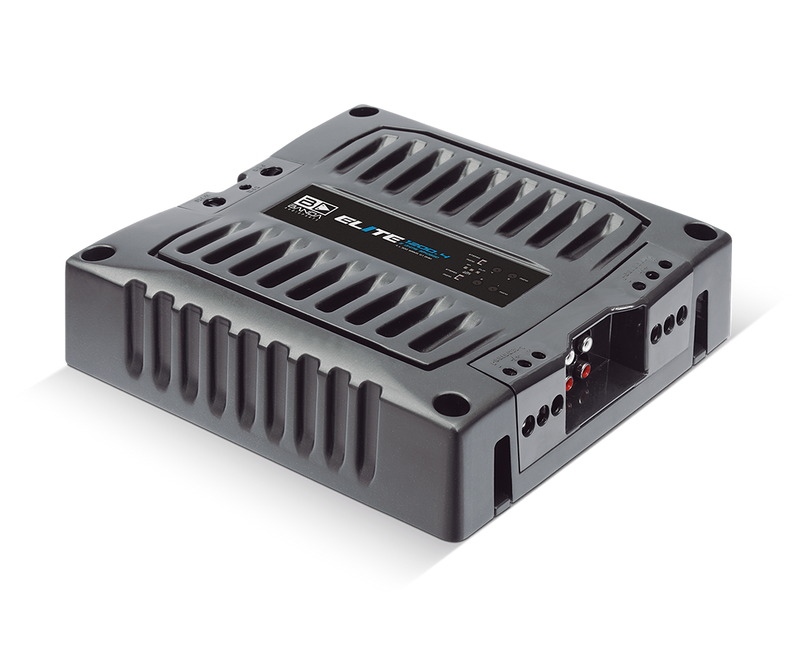

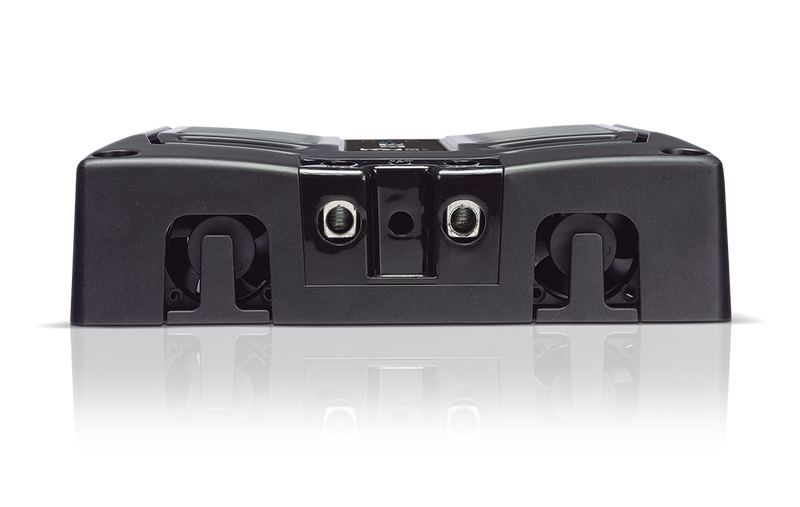

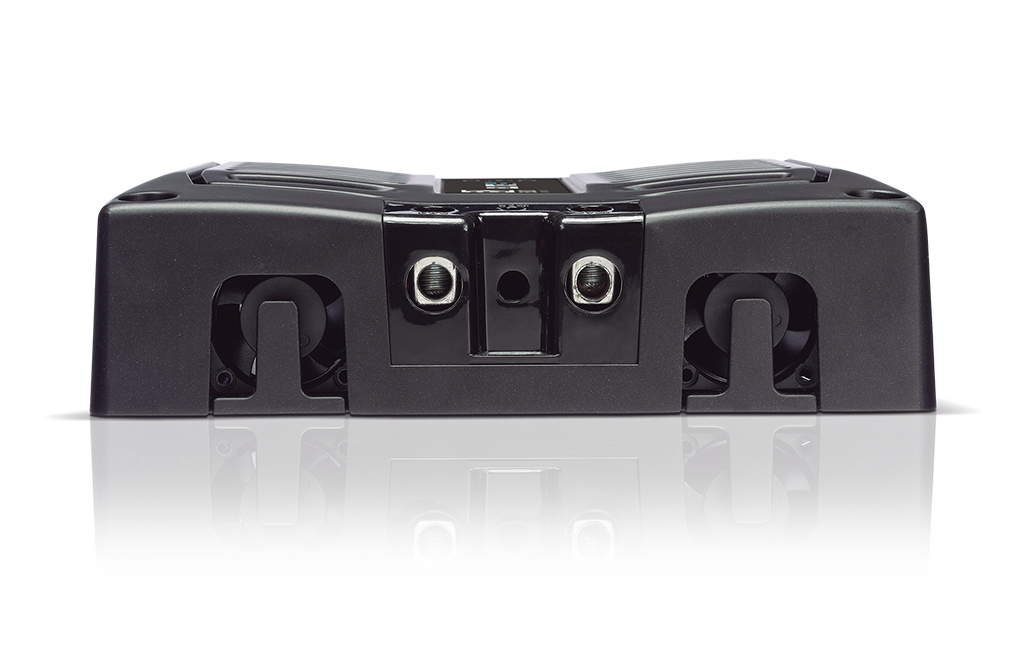

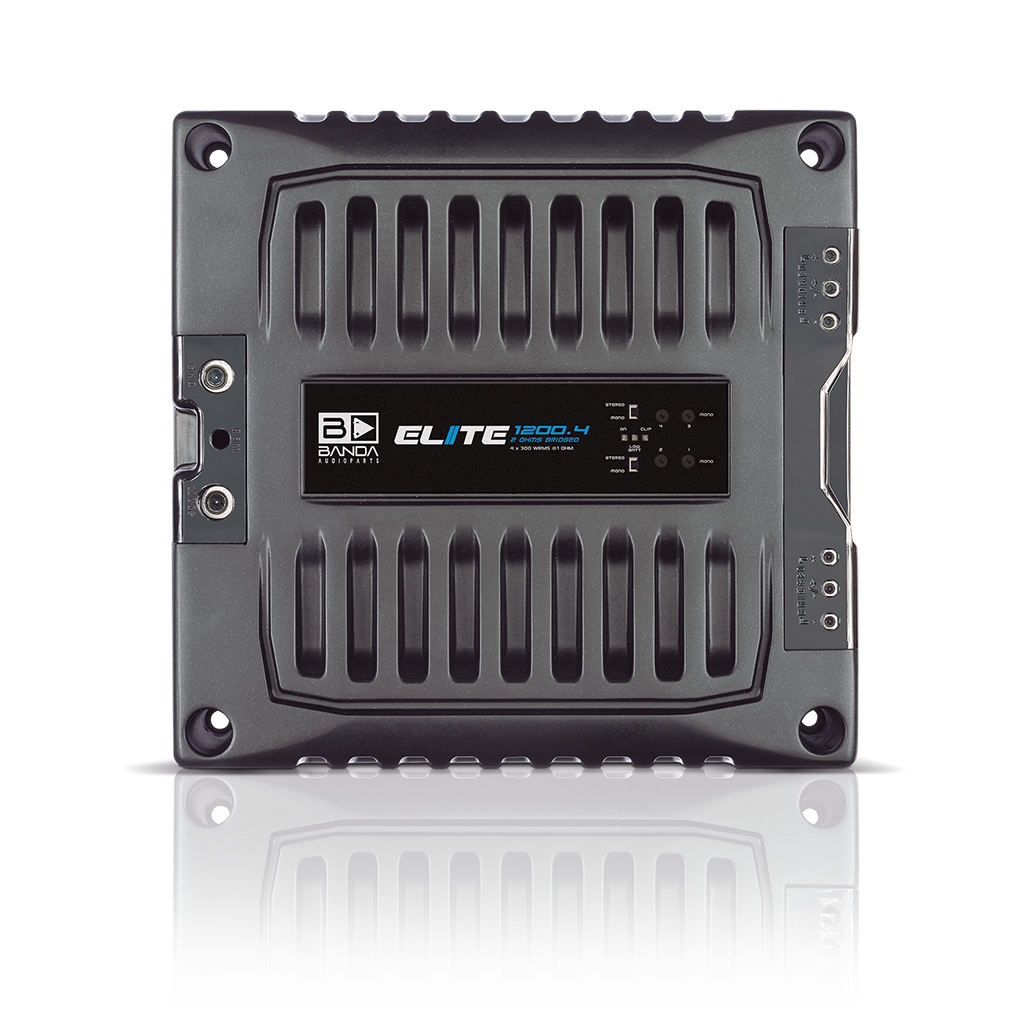

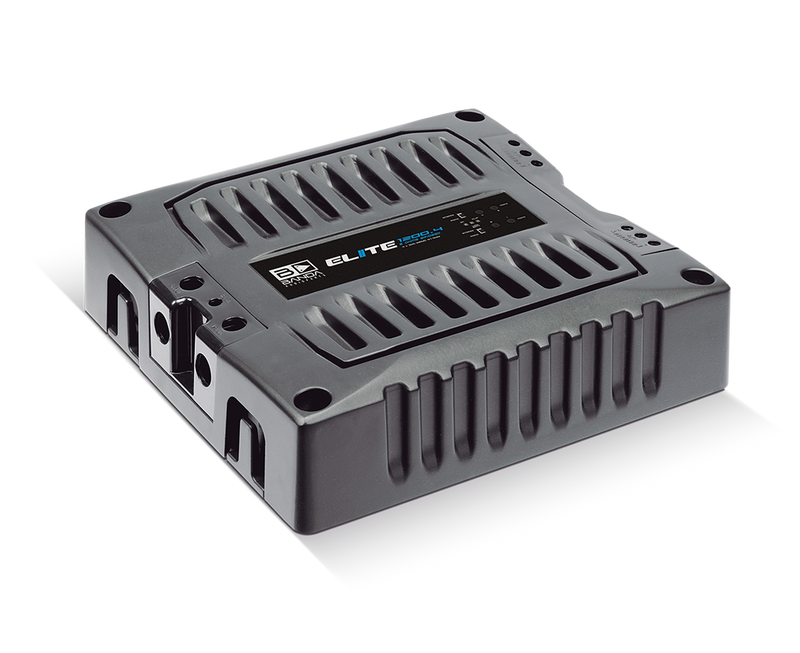

ELITE 1200.4 Amplifier Series: Power & Versatility for Your Audio System
Unleash the full potential of your sound system with the ELITE 1200.4 amplifier. Boasting a robust 1200 Watts RMS across 4 channels, this versatile amplifier is engineered to fit seamlessly into diverse audio setups. Its full-range frequency response makes it the perfect choice for powering a wide array of components, including subwoofers, woofers, mid-bass speakers, horn drivers, and super tweeters.
The ELITE 1200.4 also offers flexible connectivity, allowing for 4, 3, or 2-channel configurations when utilizing bridge connections. Power a complete medium-sized sound system with exceptional audio quality and efficient power consumption.
ELITE 1200.4 - 1 Ohm Version
Experience impressive power with this 1-ohm per channel variant, designed for systems requiring lower impedance.
Technical Specifications:
-
Operating Class: Class D
-
Max Power (14.4V, 1 Ohm): 4 x 400 WRMS
-
Max Power (14.4V, 2 Ohms): 4 x 260 WRMS
-
Max Power (14.4V, Bridge 2 Ohms): 2 x 800 WRMS
-
Max Power (12.6V, 1 Ohm): 4 x 300 WRMS
-
Max Power (12.6V, 2 Ohms): 4 x 200 WRMS
-
Max Power (12.6V, Bridge 2 Ohms): 2 x 600 WRMS
-
Efficiency (2 Ohms): 85%
-
Efficiency (1 Ohm): 75%
-
Input Voltage: 9 - 15V
-
Input Impedance: 100K Ohms
-
THD+N: <1%
-
Input Sensitivity: 150mV - 4V
-
Signal-to-Noise Ratio: 85dB
-
Frequency Response: 20 to 20kHz (-3dBs)
-
HPF (High Pass Filter): 80Hz 12dB/octave Linkwitz-Riley
-
LPF (Low Pass Filter): 80Hz 12dB/octave Linkwitz-Riley
-
Recommended Fuse: 80 A
-
Quiescent Current: 1.5 A
-
Max Current (musical signal): 75 A
-
Power Cables (min. recommended): 16mm² / 5 AWG
-
Output Cables (min. recommended): 2 x 2.5mm² / 2 x 14 AWG
-
Weight (Kg): 3.7
-
Height (mm): 63
-
Width (mm): 225
-
Depth (mm): 236
ELITE 1200.4 - 2 Ohm Version
This 2-ohm per channel amplifier is optimized for systems requiring higher impedance, delivering reliable and clear audio performance.
Technical Specifications:
-
Operating Class: Class D
-
Max Power (14.4V, 2 Ohms): 4 x 400 WRMS
-
Max Power (14.4V, 4 Ohms): 4 x 260 WRMS
-
Max Power (14.4V, Bridge 4 Ohms): 2 x 800 WRMS
-
Max Power (12.6V, 2 Ohms): 4 x 300 WRMS
-
Max Power (12.6V, 4 Ohms): 4 x 200 WRMS
-
Max Power (12.6V, Bridge 4 Ohms): 2 x 600 WRMS
-
Efficiency (4 Ohms): 92%
-
Efficiency (2 Ohms): 80%
-
Input Voltage: 9 - 15V
-
Input Impedance: 100K Ohms
-
THD+N: <1%
-
Input Sensitivity: 150mV - 4V
-
Signal-to-Noise Ratio: 85dB
-
Frequency Response: 20 to 20kHz (-3dBs)
-
HPF (High Pass Filter): 80Hz 12dB/octave Linkwitz-Riley
-
LPF (Low Pass Filter): 80Hz 12dB/octave Linkwitz-Riley
-
Recommended Fuse: 80 A
-
Quiescent Current: 1.5 A
-
Max Current (musical signal): 75 A
-
Power Cables (min. recommended): 16mm² / 5 AWG
-
Output Cables (min. recommended): 2 x 2.5mm² / 2 x 14 AWG
-
Weight (Kg): 3.7
-
Height (mm): 63
-
Width (mm): 225
-
Depth (mm): 236
