ELECTRA Series – Precision Bass Amplification | 2 Ohms Version
The ELECTRA 2 Ohms amplifier was designed for those who seek high-impact, ultra-defined bass with outstanding efficiency. With an extended frequency response from 16Hz to 500Hz (-3dB), it is ideal for powering subwoofers and low-frequency drivers, delivering both punch and clarity.
The adjustable Bass Boost (30Hz to 80Hz) provides enhanced control over your system’s low-end performance, allowing you to fine-tune the bass response to match your setup.
Crafted with a 100% aluminum chassis for superior durability and heat dissipation, the ELECTRA 2 Ohms delivers 3000 WRMS at 2 Ohms and 1700 WRMS at 4 Ohms. It also offers very low total harmonic distortion (<1%), a Clipping Indicator, and protection against thermal overload and short circuits. The integrated temperature-activated micro fans ensure the amplifier operates safely under demanding conditions.
With its modern, clean design, the ELECTRA seamlessly fits into professional or custom sound systems, combining aesthetic appeal with performance.
Technical Specifications – ELECTRA 2 Ohms
-
Maximum Power @ 12.6V / 2 Ohms: 3000 WRMS
-
Maximum Power @ 12.6V / 4 Ohms: 1700 WRMS
-
Efficiency @ 2 Ohms: 82%
-
Input Voltage: 9V – 15V
-
Input Impedance: 100K Ohms
-
THD+N: <1%
-
Input Sensitivity: 150mV – 8V
-
Signal-to-Noise Ratio: 80dB
-
Frequency Response: 16Hz – 500Hz (-3dB)
-
Bass Boost @ 30-80Hz: Adjustable from 0 to +12dB
-
HPF (Subsonic Filter): 16Hz to 100Hz
-
LPF (Crossover): 80Hz to 500Hz
-
Recommended Fuse: 150A
-
Idle Current Draw: 2.5A
-
Maximum Current Draw (musical signal): 160A
-
Recommended Power Cable (min.): 35mm²
-
Weight: 3.7kg (8.16 lbs)
-
Height: 63mm (2.48 in)
-
Width: 225mm (8.86 in)
-
Depth: 236mm (9.29 in)
-

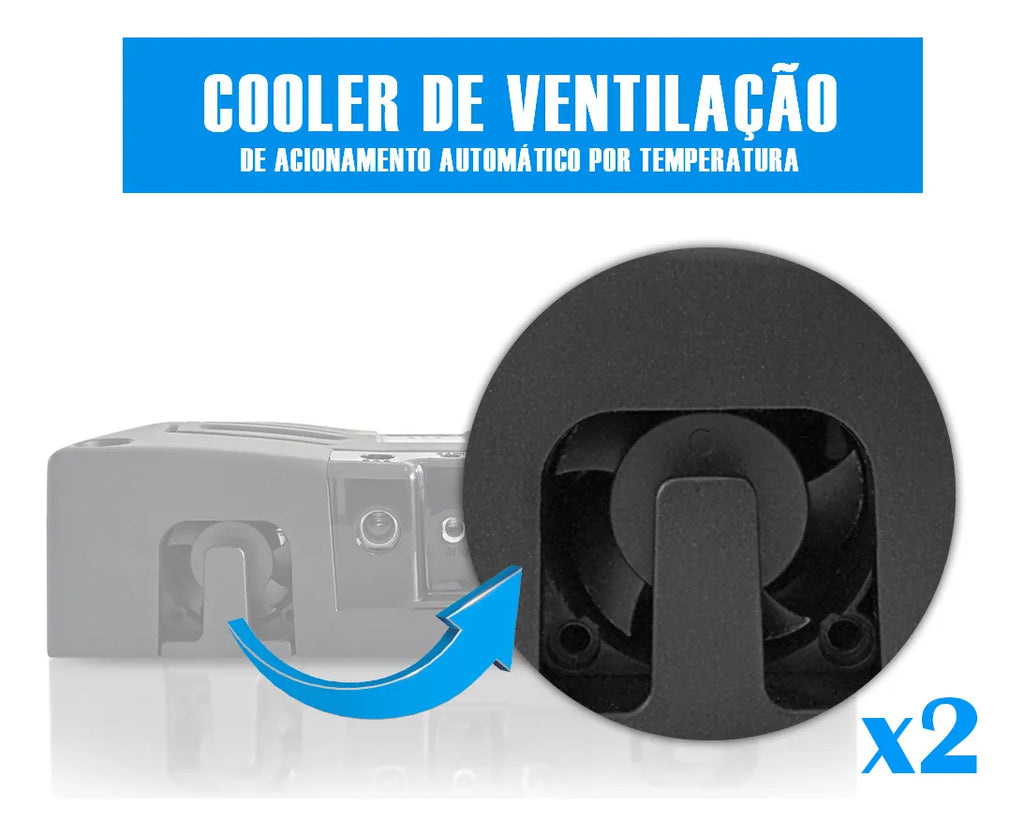

Cooling: Temperature-activated micro fans
-
Protections: Short-circuit and thermal protection
-
Chassis: Solid aluminum construction
