Description

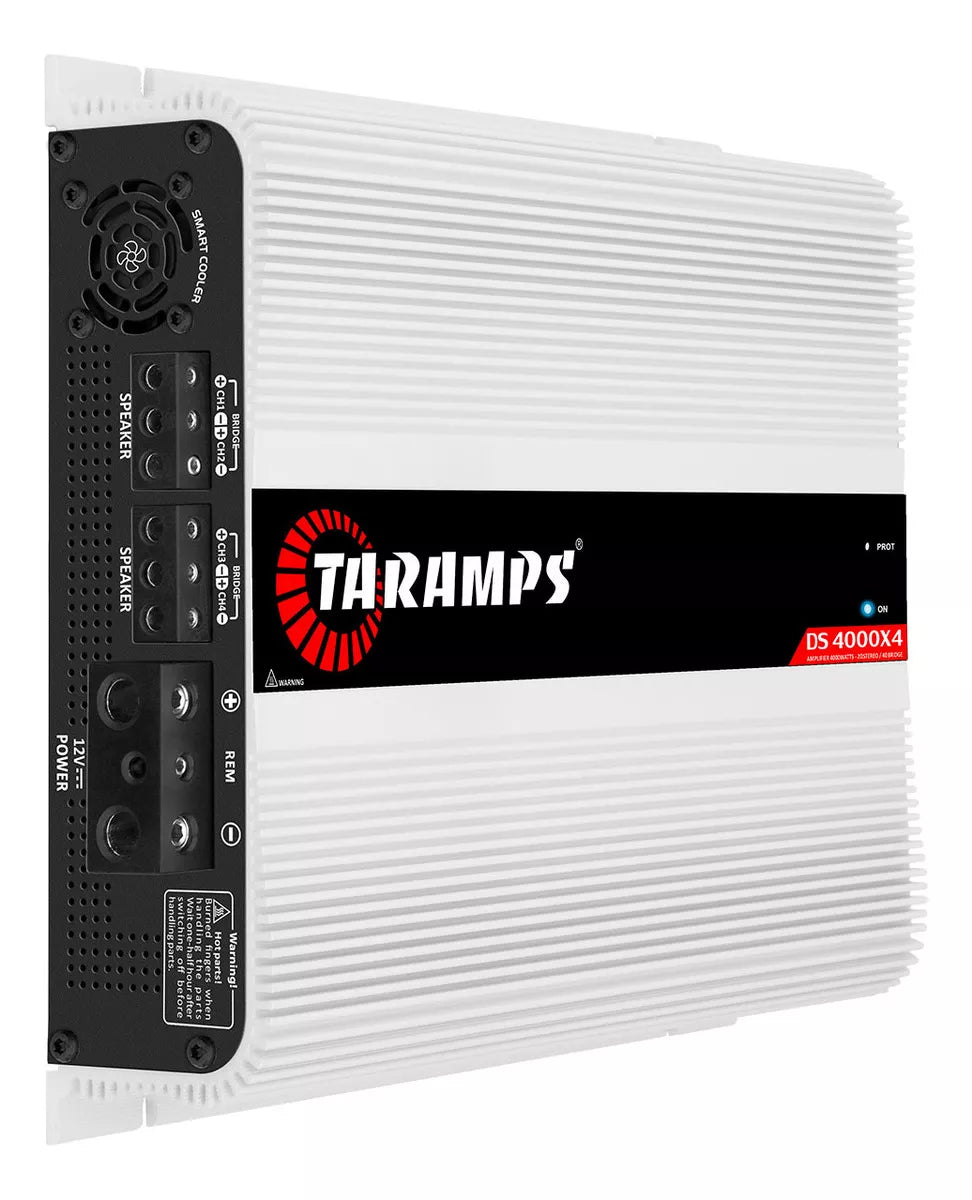

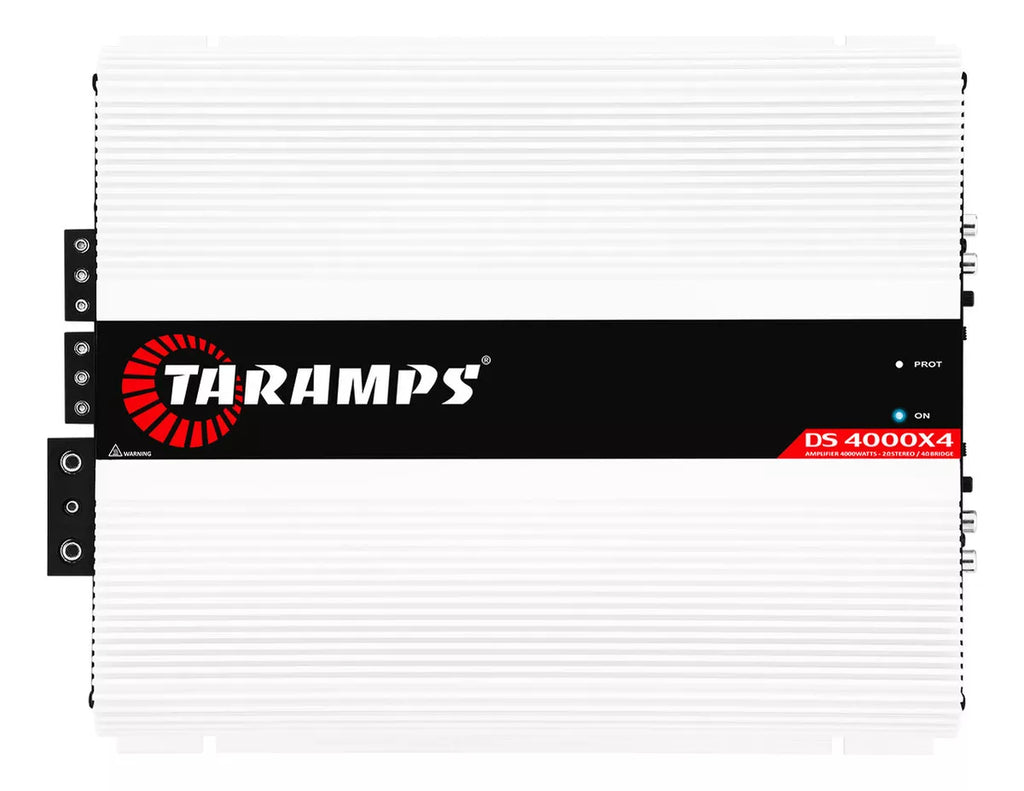

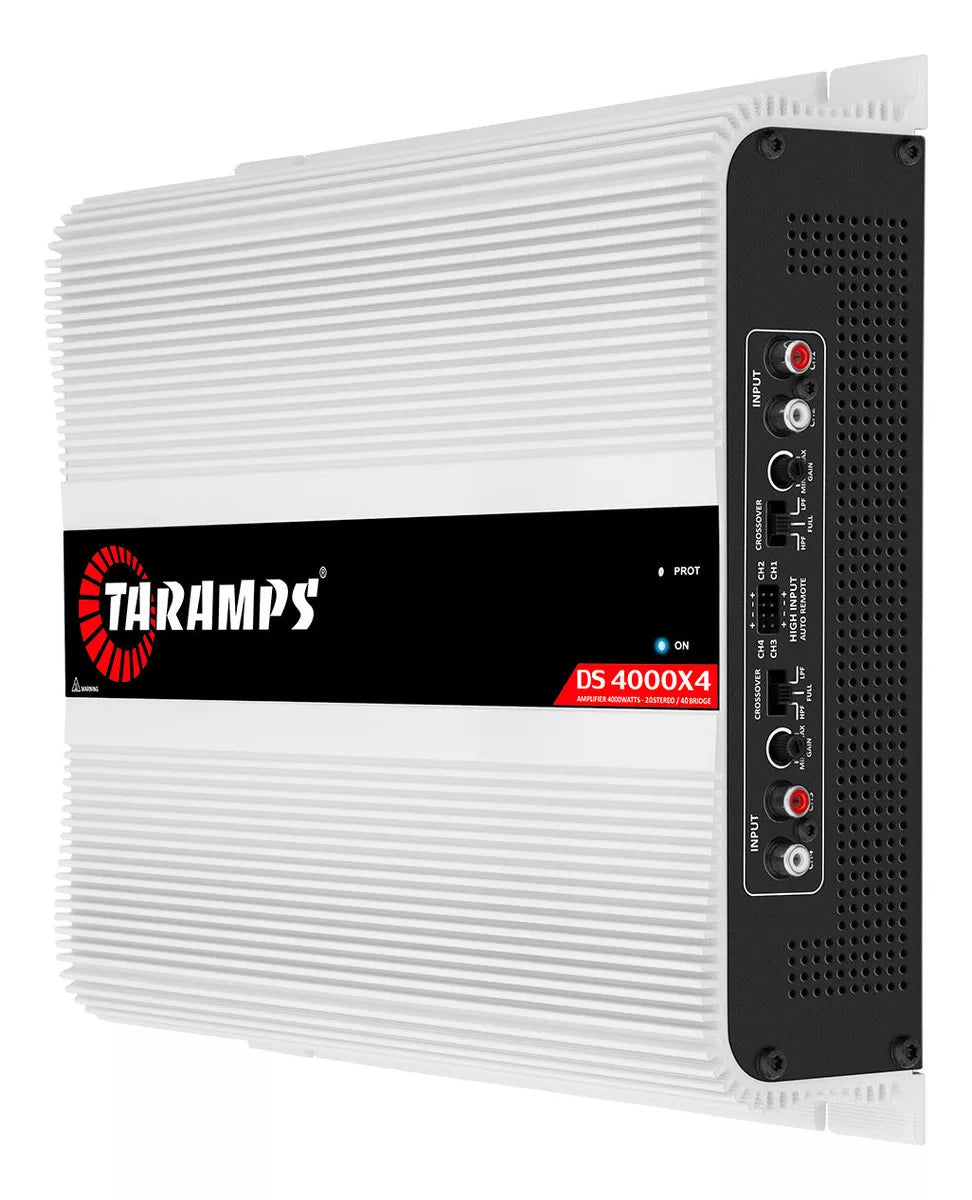

Taramps DS 4000x4 – High-Performance 4-Channel Amplifier (4000W RMS, 2 Ohms)
The Taramps DS 4000x4 is a versatile and powerful Class D digital amplifier, designed to meet the demands of various car audio systems. With a total output of 4000 Watts RMS, distributed across four channels (1000W RMS per channel), it offers exceptional sound clarity for subwoofers, woofers, mid-bass, mid-highs, and tweeters. It also allows bridge mode operation for enhanced power output.

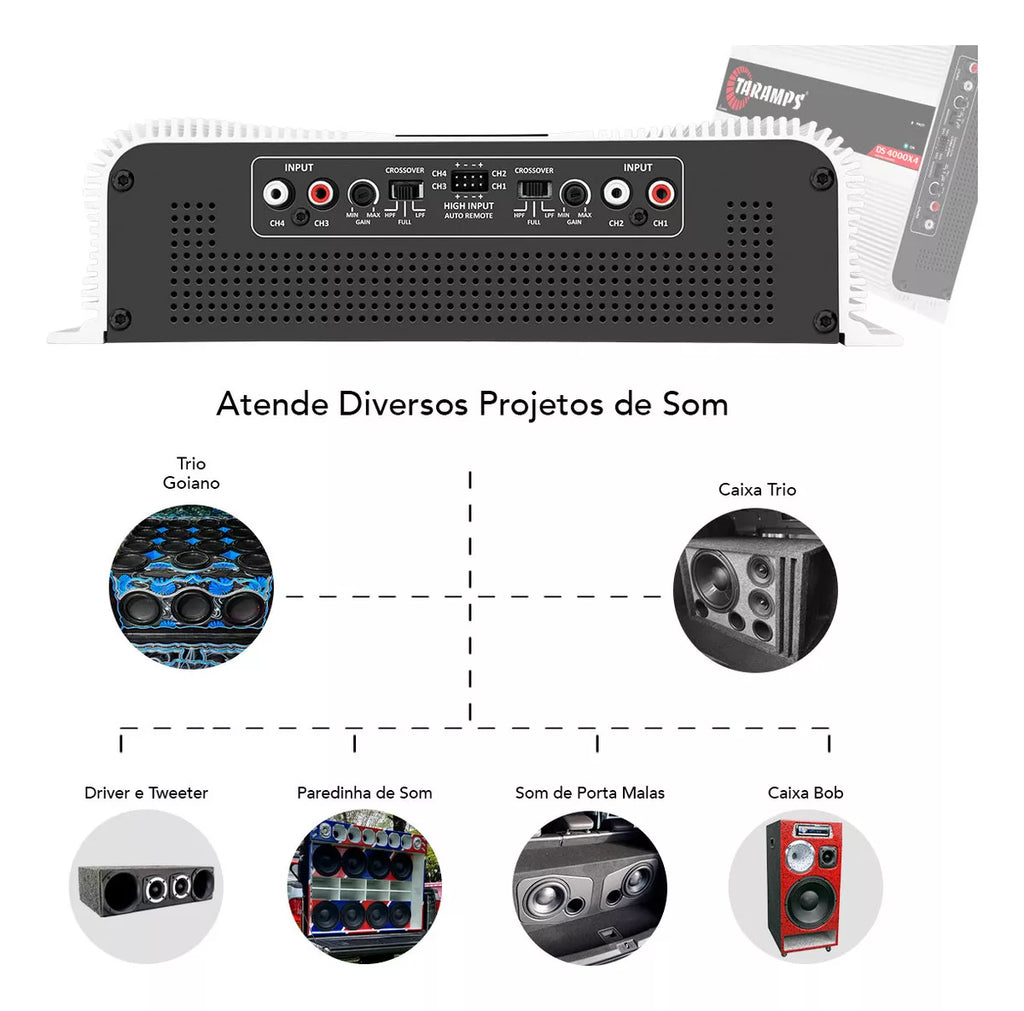

Ideal for cars, trucks, pickups, SUVs, and specialized setups like trunk systems, trio boxes, wall setups, and residential speaker systems, this amplifier delivers high efficiency, reliability, and outstanding audio performance.
Key Features:
🔹 Total Power Output: 4000W RMS @ 2 Ohms
🔹 4 Independent Channels – 1000W RMS per channel

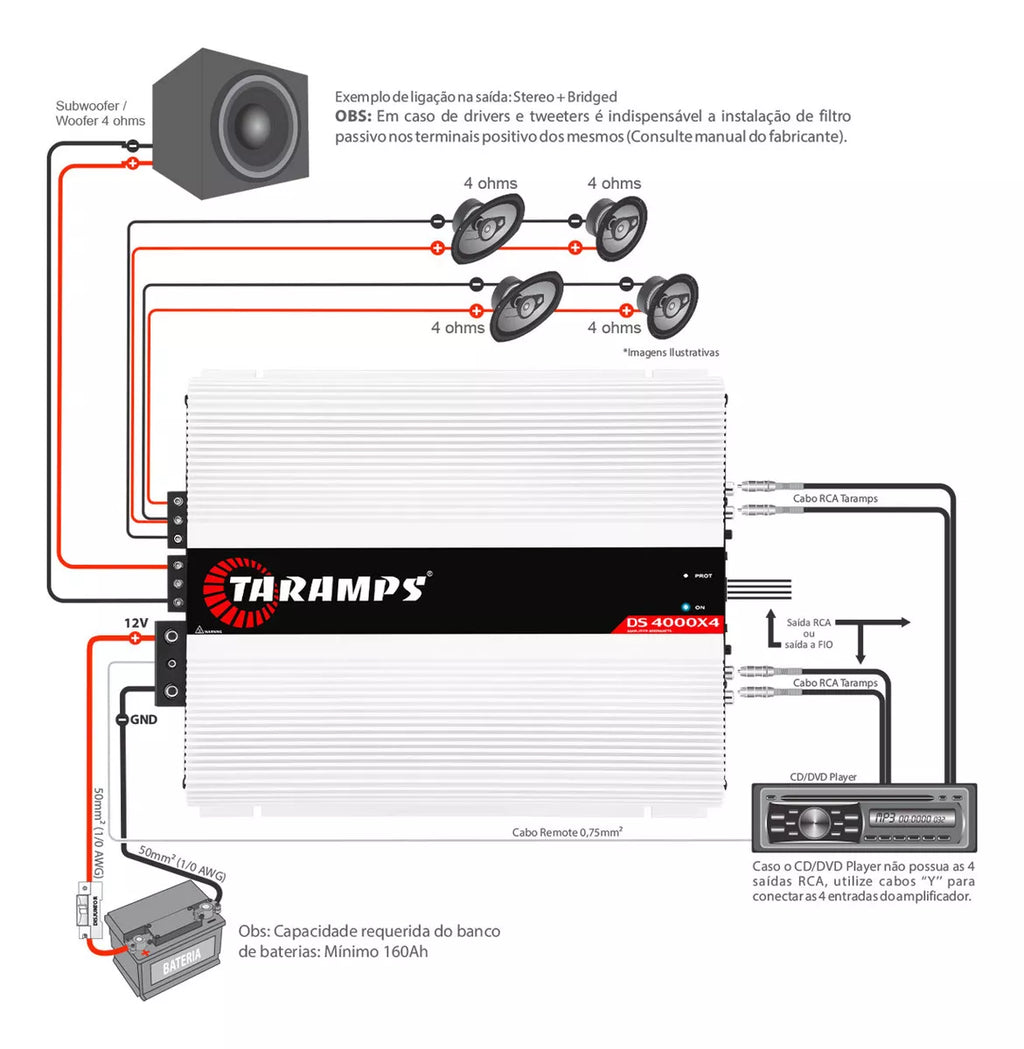

🔹 Bridge Mode Compatible – 2x 2000W RMS @ 4 Ohms
🔹 Class D Digital Efficiency – Reduced heating and high performance
🔹 Fixed Crossover (HPF, LPF, FULL) – Ensures precise frequency control
🔹 Wide Compatibility – Suitable for subwoofers, mids, and tweeters
🔹 Advanced Protection System – Short-circuit and overload protection
🔹 Compact and Lightweight – Easy installation in various setups
Technical Specifications:
✔ Operation Class: Class D (Digital)
✔ Number of Channels: 4 (Stereo & Bridge mode capable)
✔ Power Ratings (@14.4V):
- 2 Ohms Stereo: 4000W RMS (4 x 1000W RMS)
- 4 Ohms Stereo: 2500W RMS (4 x 625W RMS)
-
4 Ohms Bridge: 4000W RMS (2 x 2000W RMS)
✔ Minimum Output Impedance: - Stereo Mode: 2 Ohms
- Bridge Mode: 4 Ohms
✔ Input Sensitivity: - RCA: 250mV to 4V

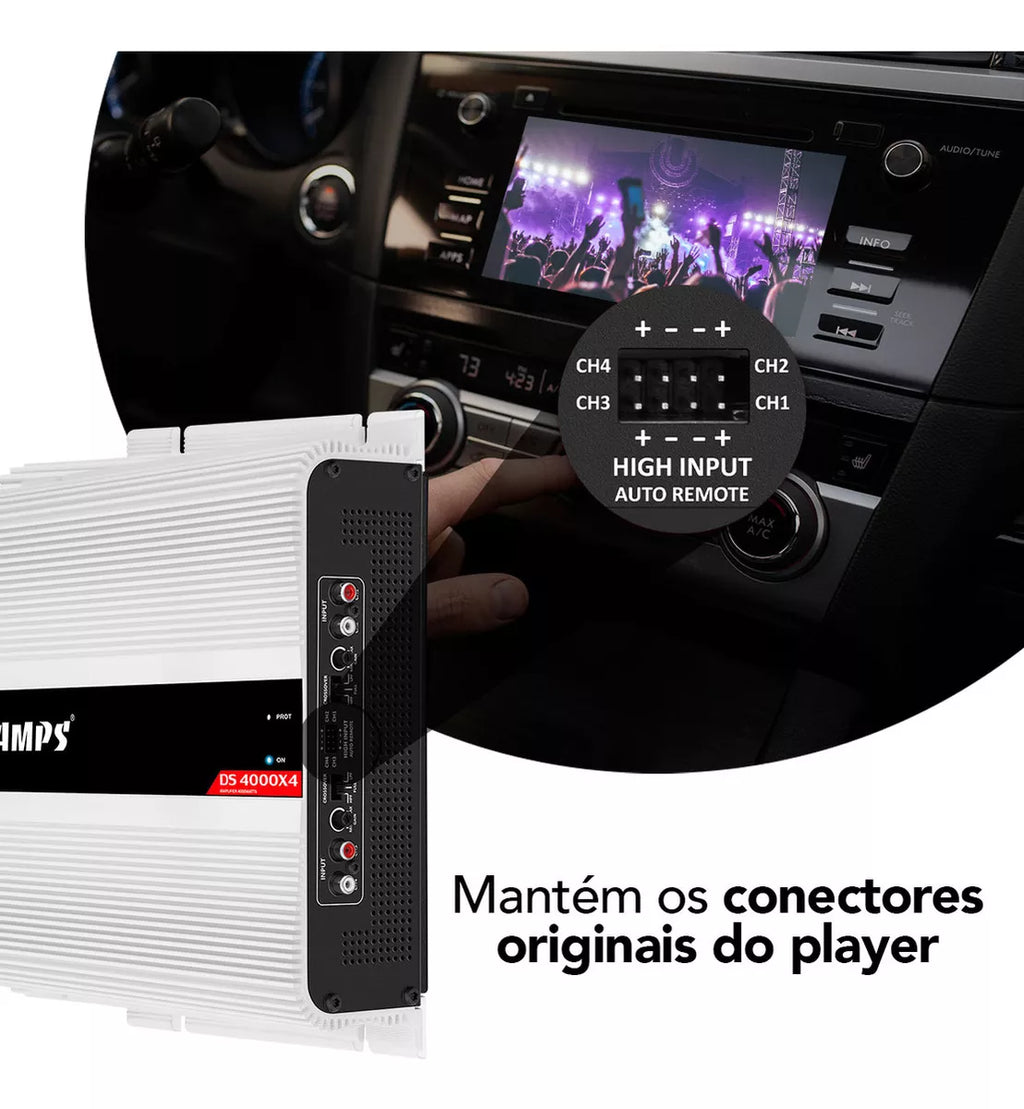

- Wire Input: 3V to >10V
✔ Frequency Response: 8Hz – 20kHz (-3dB)
✔ Fixed Crossovers: - Low Pass (LPF): 90Hz
-
High Pass (HPF): 90Hz
✔ Power Supply Voltage Range: 9V – 17VDC
✔ Power Consumption: - Idle Consumption: 2.8A
- Maximum Musical Consumption: 160A @12.6VDC
-
Maximum Sine Wave Consumption: 320A @12.6VDC
✔ Protection System: Output overload protection

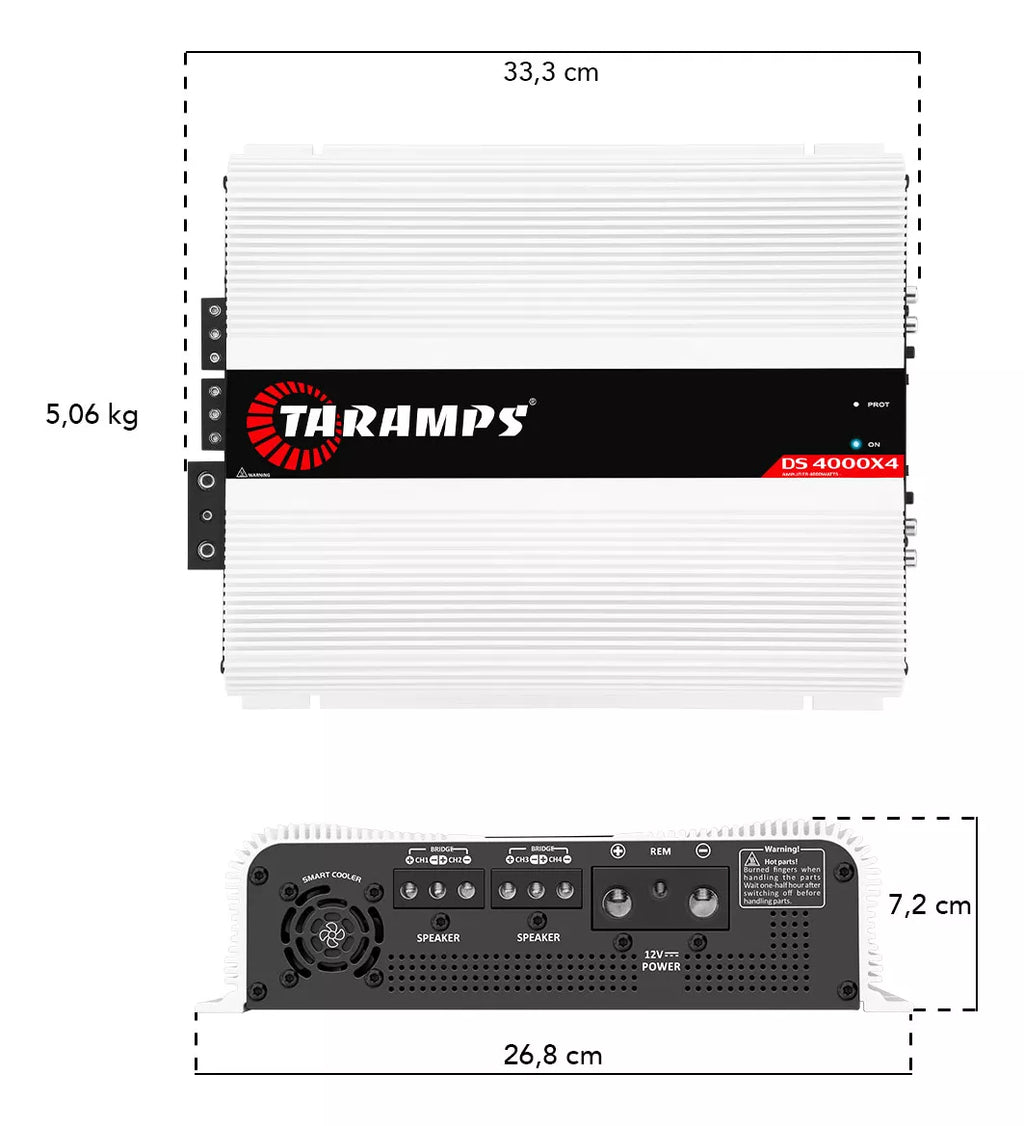

✔ Dimensions: 10.55" x 2.83" x 13.11" (268 x 72 x 333mm)
✔ Weight: 5.06kg (11.15 lb)
What’s Included?
✔ 1x Taramps DS 4000x4 Amplifier
✔ 1x Wire Input Connector (Approx. 20cm Length)
✔ QR Code for Digital Manual Download
✔ 1x Taramps Sticker
Installation Recommendation:
⚠ Professional installation recommended to ensure optimal performance and prevent damage.
🚀 The Taramps DS 4000x4 is the perfect choice for those who demand power, clarity, and versatility in their car audio system.
