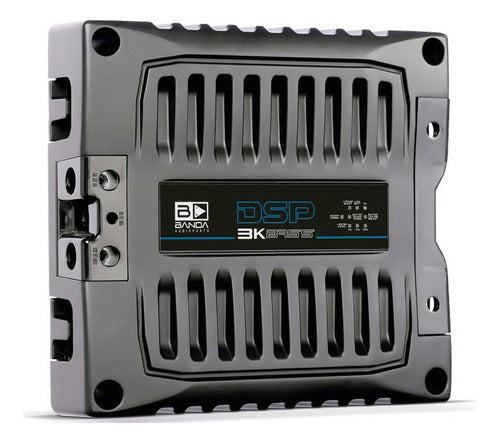

Banda Dsp Bass 3k1 3000 Watts RMS 1 Ohm Limiter Amplifier Audio Car

DSP BASS Series – Intelligent Power and Protection for Your Subwoofers

The DSP BASS line stands out for its integrated limiter, which brings superior protection, precision, and efficiency to your audio system. Unlike external processors, the internal limiter maintains stable protection levels regardless of voltage fluctuations, helping to prevent speaker damage and reduce energy consumption.

Users can select between three limiter levels—1%, 5%, and 10%—via a tactile switch, offering flexible control over dynamics and system safety.

This amplifier delivers an impressive 3500 WRMS @ 1 Ohm and comes equipped with advanced features such as a variable Bass Boost, Subsonic HPF, and LPF Crossover. Housed in a solid aluminum chassis, it combines high performance with robust protection, including thermal and short-circuit safeguards.

With its intelligent design and cutting-edge protection technology, the DSP BASS amplifier is ideal for serious bass enthusiasts looking for clean, controlled, and reliable power.

Technical Specifications – DSP BASS Series

• Maximum Power @ 12.6V / 1 Ohm: 1 x 3500 WRMS

• Maximum Power @ 12.6V / 2 Ohms: 1 x 2100 WRMS

• Efficiency: 76%

• Input Voltage: 9V – 15V

• Input Impedance: 100K Ohms

• THD+N: Minimum 1.5%, Maximum 7.5%

• Input Sensitivity: 300mV – 8V

• Signal-to-Noise Ratio: 80dB

• Frequency Response: 22Hz – 1000Hz

• Bass Boost: 30Hz – 80Hz (0 to +12dB)

• HPF (Subsonic Filter): 22Hz – 65Hz

• LPF (Crossover): 80Hz – 250Hz

• Limiter Levels: Selectable – 1%, 5%, or 10%

• Recommended Fuse: 150A

• Idle Current Draw: 2.5A

• Maximum Current Draw (musical signal): 220A

• Maximum Current Draw (sine signal): 440A

• Recommended Power Cables (min.): 50mm²

• Weight: 3.7kg (8.16 lbs)

• Height: 63mm (2.48 in)

• Width: 225mm (8.86 in)

• Depth: 236mm (9.29 in)

Additional Information

• All products include official invoice

• 1-year manufacturer warranty

• Shipping within 24 business hours

• Images for illustrative purposes only

• Professional installation is strongly recommended. We are not responsible for damage caused by improper installation or misuse.
