JFA 120a Storm Lite Bivolt Power Supply For Automotive Module

❤️ Processing Time 1 - 2 Business Days!
❤️ 03 - 05 Business Days Products Delivery!

Description

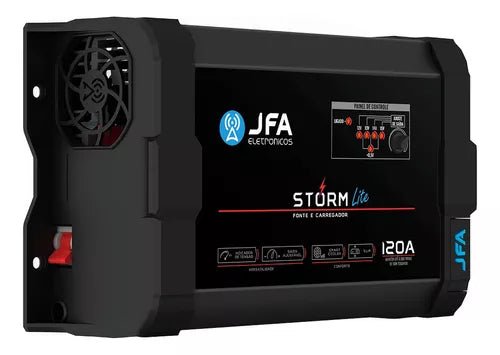

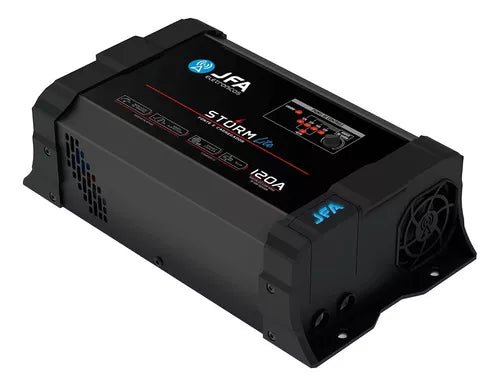

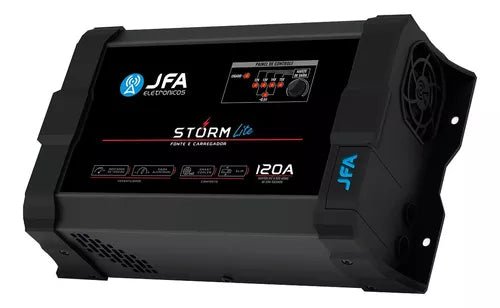

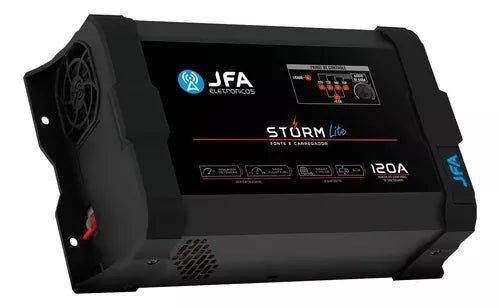

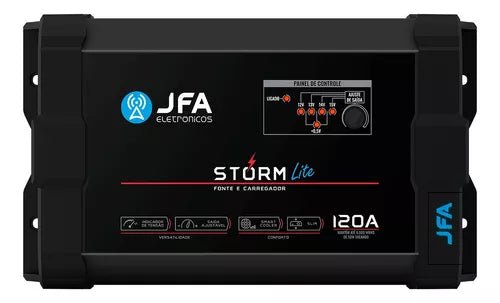

Automotive Power Supply JFA STORM LITE 120A

Storm is more than a power supply. She is the revolution of everything the JFA has ever produced. Equipped with the latest technology, compact and with exclusive functions, Storm is the best choice for charging, feeding and also monitoring the functioning of automotive batteries.

It brings together the main characteristics of the SCI and Redline lines and inaugurates a new concept of Intelligent Source.
Storm Differentials:
- Storm function that raises, for a short time, the output voltage to 15V, giving maximum performance to the amplifier;
- Intelligent Charging System (SCI) and Slow Charging System in three phases;
- Exclusive battery diagnostic function, in just 10 seconds, through the CCA meter and real analysis of the charge accumulation capacity;
- Intelligent ventilation system with dynamic PWM control;
- Radical recommends this source for those who use it in a BOB box, as the sound will play stronger with the STORM function
- Compact design, smaller than the previous lines, and harmonic, ideal for any project.

Technical Specification:
Consumption with Maximum Load: 1800W
Maintains Up to 6000W RMS of
Automatic Bivolt Sound: 110/220Vac Bivolt
Mains Input: 90 to 140Vac/ 170 to 240Vac
Selectable Output Voltage: 12.6V / 13.0V / 13.4V / 13.8V / 14.0V / 14.4V
Smart Charging System: 13.8 / 14.4 Cyclic
Output Current: 120 Amps
SCI Function: Smart Charging System
Ammeter Accuracy: 96%
Display to Monitor Voltage or Current
Slow Charging System (3 Phases): Lift / Absorption / Equalization
LEDs Battery Level Indicators and Full Charge
Protections: Overload, Output Short and Temperature
Smart Cooler - Intelligent Ventilation System
Control: Dynamic by PWM
Topology: Half Bridge
Weight: 2,050 Kg
Approximate Measurements (LxHxD): 27, 9x16,3x8,6cm

Package Contents:
01 JFA 120a Storm Lite Automotive Source
Instruction Manual
Invoice

Gift 1 JFA Sticker
