JFA 380x4 4-Channel Amplifier Module with Integrated Crossover - 2024 Launch
JFA 380x4 4-Channel Amplifier Module with Integrated Crossover - 2024 Launch
JFA 380x4 4-Channel Amplifier Module with Integrated Crossover - 2024 Launch
JFA 380x4 4-Channel Amplifier Module with Integrated Crossover - 2024 Launch
JFA 380x4 4-Channel Amplifier Module with Integrated Crossover - 2024 Launch
JFA 380x4 4-Channel Amplifier Module with Integrated Crossover - 2024 Launch
JFA 380x4 4-Channel Amplifier Module with Integrated Crossover - 2024 Launch

JFA 380x4 4-Channel Amplifier Module with Integrated Crossover - 2024 Launch

JFA ELETRONICOS

Regular price $199.00 $149.00

people are currently looking at this product

Estimated delivery time 3-5 days

❤️ Processing Time 1 - 2 Business Days!
❤️ 03 - 05 Business Days Products Delivery!

Introducing the revolutionary high-performance AP380Wx4, designed for music and audio enthusiasts. This amplifier is set to elevate the sound experience to unprecedented levels, securing a prominent position in the Brazilian market and challenging both national and international competitors with its unparalleled features.

Main Features:

Unmatched Power and Sound Purity:
Boasting an impressive 380W distributed across 4 channels, this amplifier is engineered to deliver high volume and impeccable sound quality. Experience pure, robust sound that fills every corner of the room, immersing you in an audio experience like never before.

Dynamic Bass Boost:
Our Dynamic Bass Boost technology redefines bass frequencies, delivering powerful and deep bass even at low volumes. Enjoy enriched music quality with a depth and fullness that only this amplifier can provide. This perfect blend of power and clarity transforms every song into an unforgettable experience.

Advanced Crossover with DSP:
Equipped with a 24dB/octave crossover and a state-of-the-art digital signal processor (DSP), this amplifier offers precise frequency adjustments from 20Hz to 20kHz. Customize your listening experience with pinpoint accuracy, ensuring each note is heard exactly as the artist intended.

Optional Liquid Cooling:
True high performance knows no limits. That’s why we offer an optional liquid cooling system, enabling the amplifier to be installed in enclosed spaces without air circulation. This innovation allows the amplifier to operate at maximum power continuously without overheating. Heat is efficiently dissipated through a remote radiator/fan assembly, ensuring the durability and continuous performance demanded by professionals.

Technical Specifications:

  • Maximum Power 13.8Vdc - 2Ω: 380W RMS (4x95W RMS)
  • Maximum Power 13.8Vdc - 4Ω: 252W RMS (4x63W RMS)
  • Maximum Bridged Power 13.8Vdc - 4Ω: 380W RMS (2x190W RMS)
  • Input Sensitivity: 200mV (with Level at 100%)
  • Total Harmonic Distortion: 0.03%
  • Signal/Noise Ratio: >90dB
  • Frequency Response: 20Hz to 20kHz (-3dB)

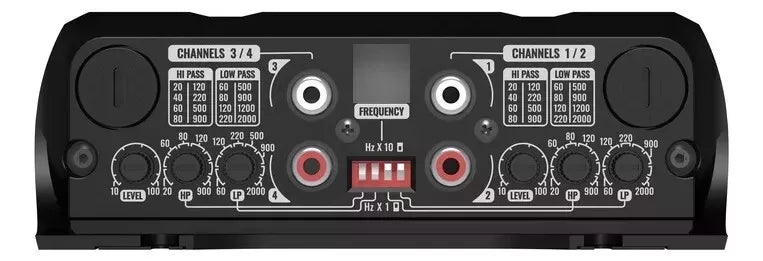

  • High Pass Filters (H.P.F): Adjustable (-24dB per octave)
  • Low Pass Filters (L.P.F): Adjustable (-24dB per octave)
  • Input Impedance: 22kOhms
  • Protection System: Thermal and output short
  • Minimum Supply Voltage: 9Vdc
  • Maximum Supply Voltage: 16Vdc
  • Rest Consumption: 0.5A at 13.8V
  • Standby Consumption: 2.6mA at 13.8V
  • Maximum Musical Consumption at 13.8Vdc: 17.5A
  • Maximum Sinusoidal Consumption (1kHz) at 13.8Vdc: 35A
  • Dimensions (WxHxD): 140x48x143 mm
  • Weight: 0.67 kg

By enhancing each detail and feature, this amplifier is truly in a class of its own. Upgrade your sound system with the AP380Wx4 and experience unparalleled audio performance.
